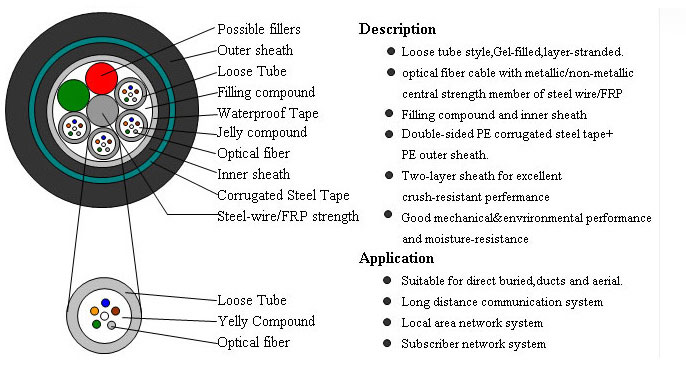

Note: 1.The colour arrangement of optical fiber is specified in the fiber colour code 2.S: short term; L: long term; L.T: loose tube 3.Crush load: N/100mm; D: cable diameter 4.GY: outdoor cable; F: FRP central strength member; T: jelly compound; Y: PE inner sheath ; 53: streel tape armored +PE outer sheath
Mechanical & Environmental characteristic
|
ITEM
|
CHARACTERISTICS
|
||||||||||||
|
Operation temperature
|
-20℃~+60℃
|
||||||||||||
|
Storage temperature
|
-40℃~+60℃
|
||||||||||||
|
Sheath Material
|
P:PE or L:LSZH or other
|
||||||||||||
|
Part
Number |
Fiber
Count |
Outside
Diameter (mm) |
L.T
Diameter (mm) |
Cable
Weight (kg/km) |
Tensile Load
|
Crush Load
|
Bend Radius
|
|||
|
S
(N) |
L
(N) |
S
(N) |
L
(N) |
S
(mm) |
L
(mm) |
|||||
|
YAGY(F)TY5304XXP-BK
|
4
|
12.0
|
5
|
115.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY5306XXP-BK
|
6
|
12.0
|
5
|
115.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY5308XXP-BK
|
8
|
12.0
|
5
|
115.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY5312XXP-BK
|
12
|
12.0
|
5
|
115.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY5324XXP-BK
|
24
|
12.0
|
5
|
115.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY5336XXP-BK
|
36
|
12.0
|
5
|
115.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY5348XXP-BK
|
48
|
12.0
|
6
|
115.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY5372XXP-BK
|
72
|
13.5
|
6
|
135.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY5396XXP-BK
|
96
|
15.5
|
8
|
165.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
|
YAGY(F)TY53144XXP-BK
|
144
|
19.6
|
12
|
205.0
|
3000
|
1000
|
3000
|
1000
|
20D
|
10D
|
Note:GY(F)TY53 denotes outdoor cable type; XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um) ;
P denotes PE sheath( L: LSZH) ; BK denotes black outer sheath;
Optical Characteristics
|
Glass Type
|
62.5/125um
|
62.5/125um
|
50/125um
|
50/125um
|
50/125um
|
SM(G652)
|
||||||
|
Grade B
|
Grade A
|
Grade B
|
Grade A
|
OM3
|
||||||||
|
P/N Code(X)
|
62B
|
62A
|
50B
|
50A
|
OM3 |
09
|
||||||
|
Operating
Wavelength |
850/1300nm
|
850/1300nm
|
850/1300nm
|
850/1300nm
|
850/1300nm
|
1310/1550nm
|
||||||
|
Bandwidth
(MHz.km) |
160/500
|
200/600
|
200/500
|
400/800
|
1500/500
|
-
|
||||||
|
Attenuation
(dB/km) |
3.50/1.50
|
3.00/1.00
|
3.20/1.20
|
3.00/1.00
|
2.70/0.80
|
0.33/0.22
|
||||||
|
Link Length
For 1000M |
200/500
|
275/550
|
500/550
|
550/550
|
10004/600
|
-
|
||||||
|
Link Length
For 10G |
-
|
-
|
-
|
-
|
300/
|
-
|
||||||
Colour Code
|
BL- Blue
|
BR- Brown
|
RE- Red
|
PU- Purple
|
||||||||||
|
OR- Orange
|
GY- Grey
|
BK- Black
|
PI- Pink
|
||||||||||
|
GR- Green
|
WH- White
|
YE- Yellow
|
AQ- Aqua
|
||||||||||
