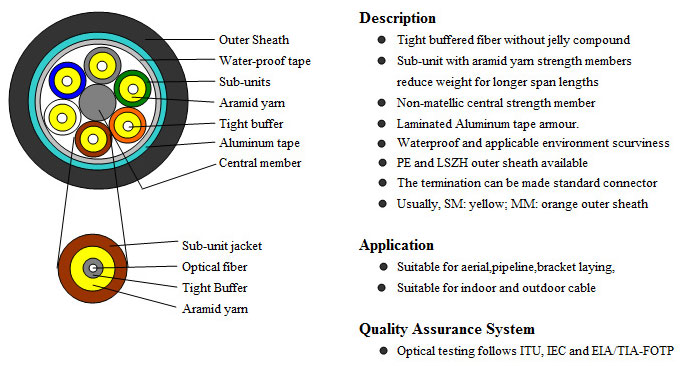

Product introduction

Mechanical & Environmental characteristics

ITEM					CHARACTERISTICS
Operation temperature					-20℃~+60℃
Storage temperature					-40℃~+85℃
Riser UL/cUL Rated					Type OFNR/OFN FT4
Plenum UL/cUL Rated					Type OFNP/OFN FT6
Jacket Material					PE or LSZH

Part  Number	Fiber  Count	Outside Diameter (mm)	Sub-unit Diameter (mm)	Cable Weight (kg/km)	Tensile Load		Crush Load		Bend Radius
					S (N)	L (N)	S (N)	L (N)	S (mm)	L (mm)
YA02BAXXP-BK	2	8.0	2.0	65.0	1500	600	1000	300	20D	10D
YA04BAXXP-BK	4	8.0	2.0	68.0	1500	600	1000	300	20D	10D
YA06BAXXP-BK	6	9.3	2.0	85.0	1500	600	1000	300	20D	10D
YA08BAXXP-BK	8	10.5	2.0	110.0	1500	600	1000	300	20D	10D
YA12BAXXP-BK	12	13.2	2.0	170.0	1500	600	1000	300	20D	10D

Note: YA denotes YUAR logo; XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um) ;
02 denotes fiber count ; P denotes PE Sheath( L: LSZH) ;BA denotes breakout armour cable or waterproof cable
BK denotes the color of outer sheath (BK: black);

Optical Characteristics

Glass Type		62.5/125um		62.5/125um		50/125um		50/125um		50/125um	SM(G652)
		Grade B		Grade A		Grade B		Grade A		OM3
P/N Code(X)		62B		62A		50B		50A		OM3	09
Operating  Wavelength		850/1300nm		850/1300nm		850/1300nm		850/1300nm		850/1300nm	1310/1550nm
Bandwidth (MHz.km)		160/500		200/600		200/500		400/800		1500/500	-
Attenuation (dB/km)		3.50/1.50		3.00/1.00		3..50/1.50		3.00/1.00		2.70/0.80	0.45/0.30
Link Length  For 1000M		200/500		275/550		500/550		550/550		10004/600	-
Link Length  For 10G		-		-		-		-		300/	-

Colour Code

BL- Blue			BR- Brown			RE- Red				PU- Purple
OR- Orange			GY- Grey			BK- Black				PI- Pink
GR- Green			WH- White			YE- Yellow				AQ- Aqua
